| Security Camera Specification | |
| Additional Information | Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% Water Protection: IP67 |
| Angle of View | 2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° |
| Day/Night | Auto(ICR)/Color/B/W |
| Dimension | 180.4 mm × 70 mm × 70 mm (7.10" × 2.76" × 2.76") (L × W × H) |
| Effective Pixels | Max. 2 MP (1920 × 1080) at 25/30 fps |
| Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| IR Distance | 30 meters |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Network | RJ-45 (10/100 Base-T) |
| Power | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminatorintensity): 6.3 W (12 VDC); 7.8 W (PoE) |
| Resolution | Max. 2 MP (1920 × 1080) at 25/30 fps |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Weight | Net Weight: 0.29 kg (0.64 lb) Gross Weight: 0.40 kg (0.88 lb) |
| Warranty Information | |
| warranty | 01-Year |

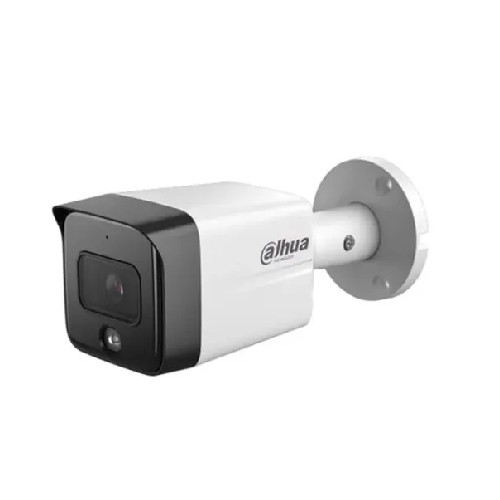

The Dahua DH-IPC-HFW1239TC1-A-LED 2MP Full-color Bullet Network IP Camera is a professional-grade security solution that combines high-definition imaging with intelligent monitoring to deliver superior performance for both residential and commercial environments. Equipped with a 1/2.8" progressive scan CMOS sensor, this security camera captures crisp 1080p full-color video at up to 30fps, ensuring clear visibility even in low-light conditions. Unlike traditional IR cameras, it features a warm LED illumination with up to 30m coverage, allowing vivid color reproduction at night for enhanced detail recognition. Its fixed-focal lens options (2.8mm or 3.6mm) provide wide-angle coverage with apertures of F1.6, delivering sharp images across different viewing angles. Built with IP67-rated weatherproof housing, the Dahua DH-IPC-HFW1239TC1-A-LED is engineered to withstand harsh outdoor conditions, making it ideal for perimeter security, parking lots, and building entrances. The Dahua IP camera supports Power over Ethernet (PoE) for simplified installation and flexible deployment, while its built-in microphone enables audio recording to complement video evidence. Advanced features such as human detection, motion detection, video tampering alerts, and abnormality detection (network disconnection, IP conflict, illegal access) ensure proactive monitoring and quick response to potential threats.
