| Security Camera Specification | |
| Day/Night | IR cut filter |
| Dimension | φ77.8 mm × 108.1 mm (φ3.06″ × 4.26″) |
| Effective Pixels | 5MP |
| Frame Rate | 25/30 fps |
| Image Sensor | 1/3″ CMOS |
| IR Distance | Up to 10 m (32.81 ft) (IR) |
| Lens Type | Fixed |
| Mount Type | M12 |
| Operating Conditions | –10 °C to +45 °C (+14 °F to +113 °F) |
| Others | Noise Reduction: 3D DNR Video Output: H.265 compressed S/N Ratio: >50 dB |
| Power | 5 VDC |
| Power Consumption | Max 4 W (live + IR + PT rotation) |
| Resolution | 5MP (2880 × 1620) |
| Shutter Speed | Auto, 1/5–1/20,000 sec |
| Weight | 195 g (0.43 lb) |
| Warranty Information | |
| warranty | 01 years |

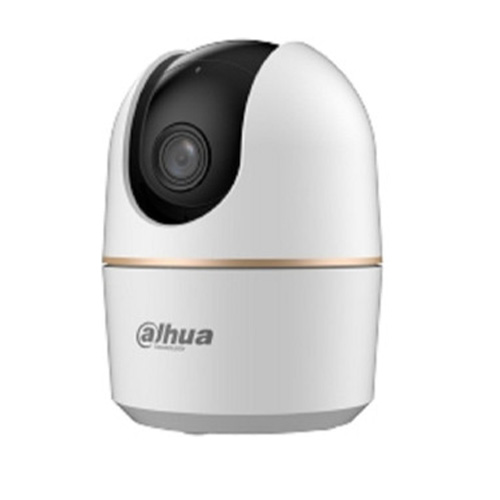

DAHUA DH-IPC-H5AE 5 MP INDOOR NETWORK CAMERA is intended for high-performance indoor security and includes innovative capabilities to improve monitoring efficiency. This camera's 1/3-inch CMOS image sensor has 5MP resolution (2880 × 1620 pixels) for excellent recording. The electronic shutter speed extends from 1/3 to 1/100,000 seconds, enabling precise pictures in a variety of lighting settings. The built-in infrared (IR) illumination provides vision up to 10 meters and adjusts automatically depending on ambient lighting. Users may swivel the camera up to 355° horizontally and tilt from 5° to 80° vertically, providing a broader viewing area. The fixed-focal lens has an F2.0 aperture and has a field of vision of 74° horizontally, 41° vertically, and 88° diagonally, making it ideal for room surveillance. Enhanced human detection ensures accurate alerts by identifying real movement instead of random motion. The Dahua DH-IPC-H5AE 5MP portable wifi camera supports H.265 video compression, which optimizes bandwidth while keeping high-quality Motion detection capabilities with four configurable areas help in identifying and alerting you to any suspicious Activities Audio features include a built-in microphone and speaker, with G.711a audio compression, enabling two-way communication. This functionality is particularly useful for real-time interaction and deterrence. The camera supports alarm events such as no SD card, SD card full, SD card error, network disconnection, motion detection, and audio detection, ensuring you are always aware of the camera's status and any potential Issues Network connectivity is facilitated through an RJ-45 port supporting 10/100 Base-T and Wi-Fi compatibility with IEEE 802.11b/g/n at 2.4 GHz. It also includes storage options with support for microSD cards up to 256 GB, allowing ample space for video recordings. The camera can be managed using DMSS software and is compatible with both iOS and Android mobile Clients Certified with CE, the Dahua DH-H5AE is built to withstand various environmental conditions, operating within a temperature range of –10 °C to +45 °C (14 °F to 113 °F) and up to 95% humidity. Its power supply is 5 VDC, 1A, with a power consumption of 1.7 W in basic mode and up to 3.5 W during maximum operation.
